Rigid Substrate

Rigid Substrate Definition

Rigid substrates are defined as inflexible, flat surfaces utilized in various manufacturing processes. They provide stability for coatings and adhesives, enhancing performance across applications. Common materials include metals, plastics, and ceramics. Rigid substrates are essential in sectors such as printing, marketing, and electronics, where they offer durability, impact resistance, and environmental stability. They serve as foundational elements in rigid printed circuit boards (PCBs). Further exploration reveals additional properties and applications of these materials.

Definition and Characteristics of Rigid Substrates

Rigid substrates are defined as inflexible, flat surfaces that serve as foundational layers for various manufacturing processes, including printing and bonding. Their core purpose is to provide stability for coatings and adhesives, ensuring peak performance. Common material compositions include metals, plastics, and ceramics, each exhibiting specific physical properties such as rigidity and thermal stability. Rigidity calibration is essential, as it adjusts material characteristics for desired stiffness. Proper surface preparation, including cleaning and chemical treatments, enhances adhesion and overall functionality. These substrates are critical in applications requiring dimensional stability and consistent surface quality, supporting both durability and effective manufacturing processes. The surface condition of the substrate significantly affects the bond strength of subsequent layers.

Global Printed Circuit Board Market Report And Strategies To 2032 by thebusinessresearchcompany.com

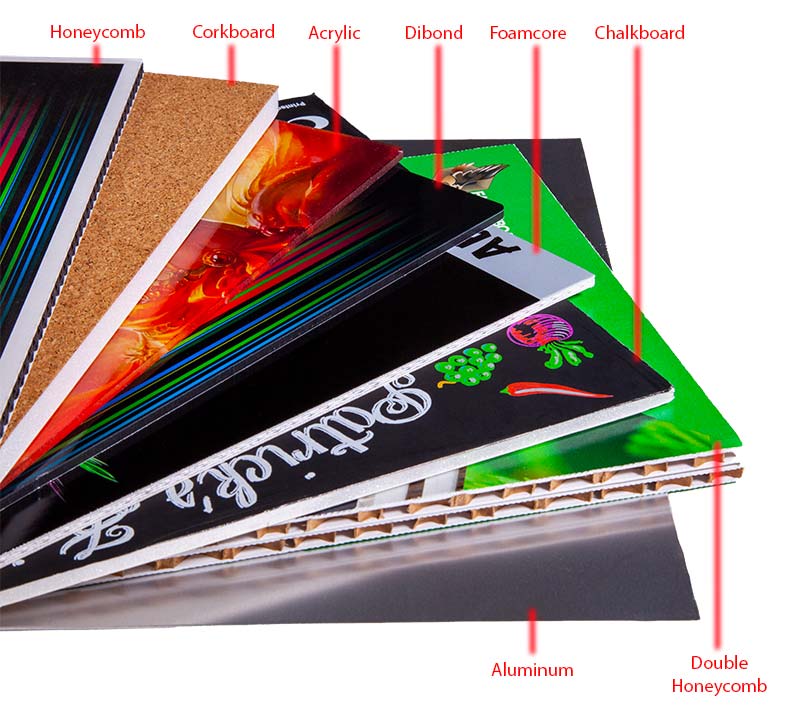

Substrate Printing by imagesquareprinting.com

Applications in Printing and Marketing

Applications in printing and marketing leverage various rigid substrates to enhance visual communication and brand messaging.

Direct-to-substrate printing and UV flatbed printing enable the production of high-quality signage, tailored for retail promotions. Rigid substrates, such as Sintra PVC and Alu Panels, are ideal for durable outdoor displays and attractive countertop promotions.

Direct-to-substrate and UV flatbed printing elevate retail promotions with durable, high-quality signage on rigid substrates like Sintra PVC and Alu Panels.

A-Frame sandwich boards provide versatile, weather-resistant signage solutions, while wall-mounted stand-offs create depth in brand presentations. Modular booth systems with interchangeable panels facilitate dynamic exhibition setups.

These applications underline the importance of rigid substrates in delivering effective visual marketing strategies across various industries.

Large Format Substrate and Rigid Material Printing by 40visuals.com

Properties and Performance of Rigid Substrates

The properties and performance of rigid substrates greatly influence their suitability for various applications in printing and marketing. Their durability and versatility allow for a crisp finish across multiple uses.

Rigid substrates, crafted from materials like PVC and aluminum, exhibit excellent chemical resistance, ensuring longevity in diverse environments. Their impact resistance is vital for outdoor or heavy-duty applications.

Environmental stability further enhances their reliability, as these materials maintain performance under varying conditions. With strong tensile and flexural strength, rigid substrates provide essential structural support while preventing deformation, making them ideal for signage and point-of-purchase displays.

Role in Electronics and PCB Manufacturing

In electronics manufacturing, rigid substrates serve a pivotal function by providing structural support for electronic components and circuits. They form the core of rigid PCBs, enabling complex component placement and high-density circuitry.

The materials used, such as FR4 and advanced composites, guarantee dimensional stability and high-temperature performance. Manufacturing process integration involves precise laminating, drilling, and etching techniques to create reliable circuit patterns.

Nevertheless, challenges persist, including high production costs and the complexity of multi-layer boards, which can increase defect risk. Ongoing developments aim to enhance material selection and reduce environmental impact in the manufacturing process.

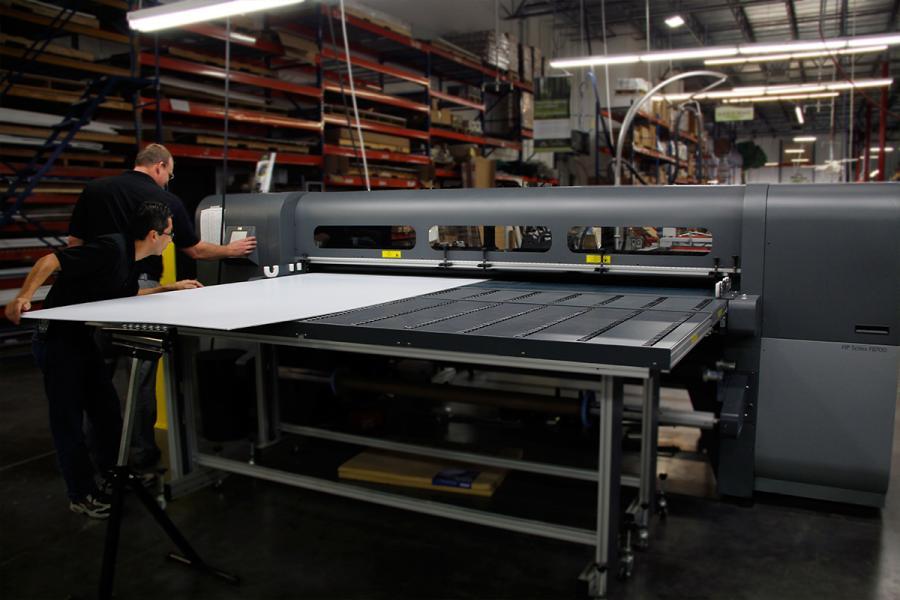

Rigid Printing - SunDance by sundanceusa.com

Knowledge Center or Printing Knowledge by customboxline.com

Comparison With Flexible Substrates

When comparing rigid substrates to flexible substrates, several critical factors emerge that highlight their distinct characteristics and applications.

Rigid substrates, composed of materials like fiberglass reinforced epoxy laminates, offer stability but lack flexibility, limiting their design versatility.

Alternatively, flexible substrates facilitate innovative designs by accommodating complex geometries and spatial constraints.

The production complexity of flexible materials often results in higher initial costs, while rigid substrates are cheaper to produce.

Rigid substrates are less durable under extreme conditions, whereas flexible variants exhibit superior chemical and vibration resistance, making them preferable for applications requiring adaptability and resilience.
