Lithography

Lithography Definition

Lithography is a printing technique that employs a flat surface, leveraging the immiscibility of oil and water to produce images through a chemical process. Originally developed by Alois Senefelder in the late 18th century, the method utilizes a range of materials for image transfer, allowing for various artistic and commercial applications. Different forms of lithography include planographic, offset, and photolithography, each serving distinct purposes. Numerous innovations continue to enhance this technology, facilitating further exploration into its capabilities.

Historical Development of Lithography

Lithography, invented between 1796 and 1798 by German playwright Alois Senefelder, emerged as a groundbreaking printing technique utilizing porous limestone to facilitate image reproduction.

Initially aimed at affordable reproductions of musical scores and maps, lithography’s potential was recognized but commercial adoption was delayed until the 1820s due to technical limitations. The mechanical planographic process allows inked and non-inked sections to be printed at the same level, enhancing the versatility of the technique. The early 19th century saw limited impact due to technical difficulties until Godefroy Engelmann resolved these issues, leading to its adoption by artists in the 1820s. This innovation marked the start of a modern lithographic process that would eventually revolutionize printing.

The introduction of sheet-fed lithography enabled precise, single-sheet prints, while web-fed lithography later advanced high-volume printing capabilities.

Throughout the 19th century, lithography found applications in artistic prints, maps, and sheet music, evolving markedly with mechanization and innovations in printing technology by the early 20th century.

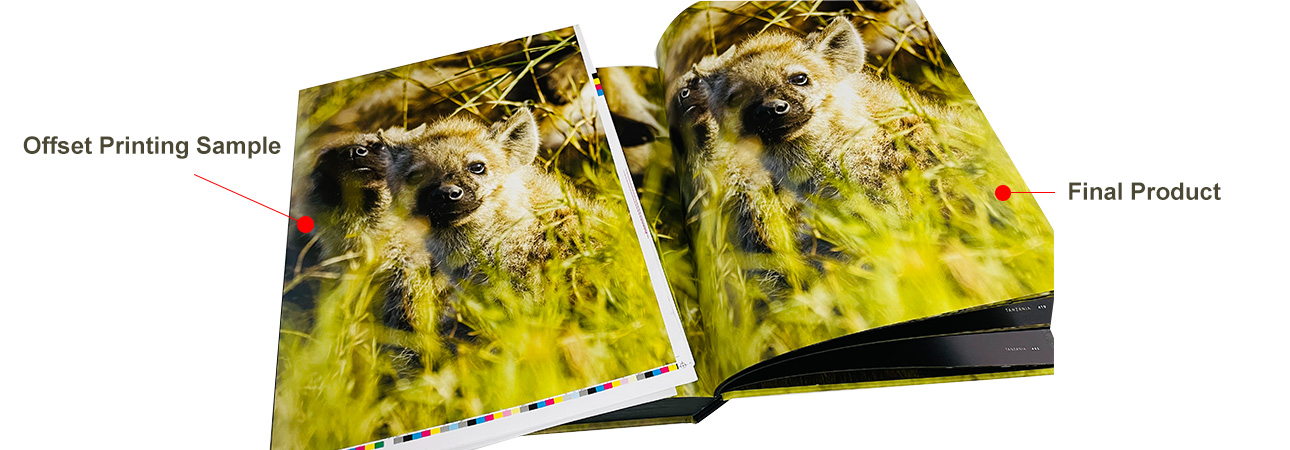

Offset Printing Sample by qinprinting.com

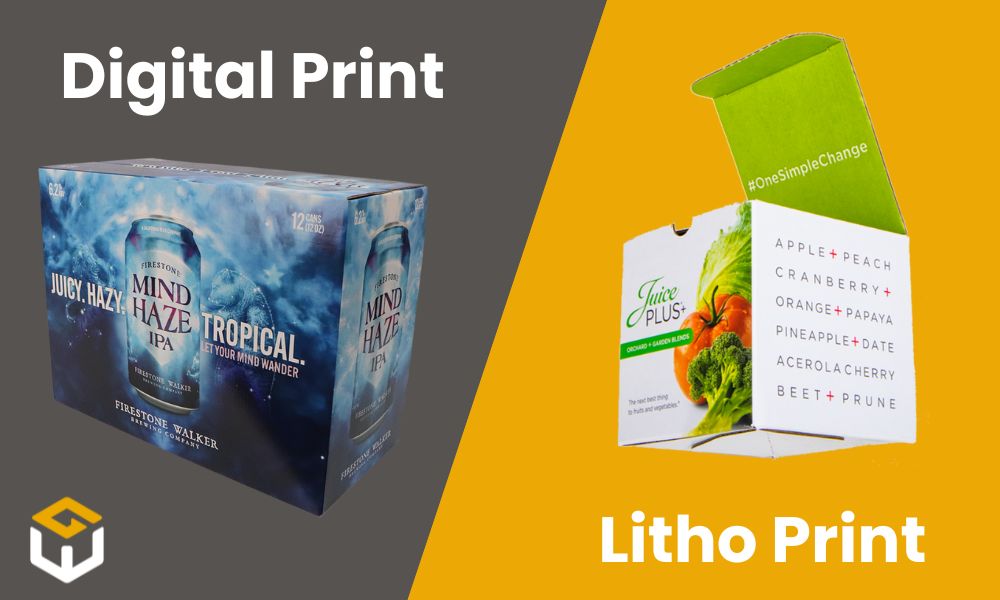

What Is the Difference Between Litho and Digital Printing? by goldenwestpackaging.com

The Lithographic Printing Process

The lithographic printing process involves a series of meticulously coordinated steps designed to achieve high-quality image reproduction.

The lithographic printing process entails carefully organized steps for superior image reproduction quality.

Initially, a smooth limestone surface is prepared, followed by the application of greasy materials to create image areas. Chemical etching enhances the separation between grease and water, ensuring stability. Also be aware that this technique is known as planographic printmaking, allowing for unique artistic expressions. The stone used is sourced from a specific quarry in Germany, which is crucial for the lithography process. During the preparation phase, grinding techniques ensure an even surface that contributes significantly to the quality of the final print.

After inking, rollers transfer ink to hydrophobic zones while dampening non-image areas. The press setup requires precise pressure calibration and alignment checks.

Post-printing, stones are cleaned and stored appropriately, ensuring longevity for future use. Quality control measures are implemented to identify imperfections, maintaining the integrity of each print.

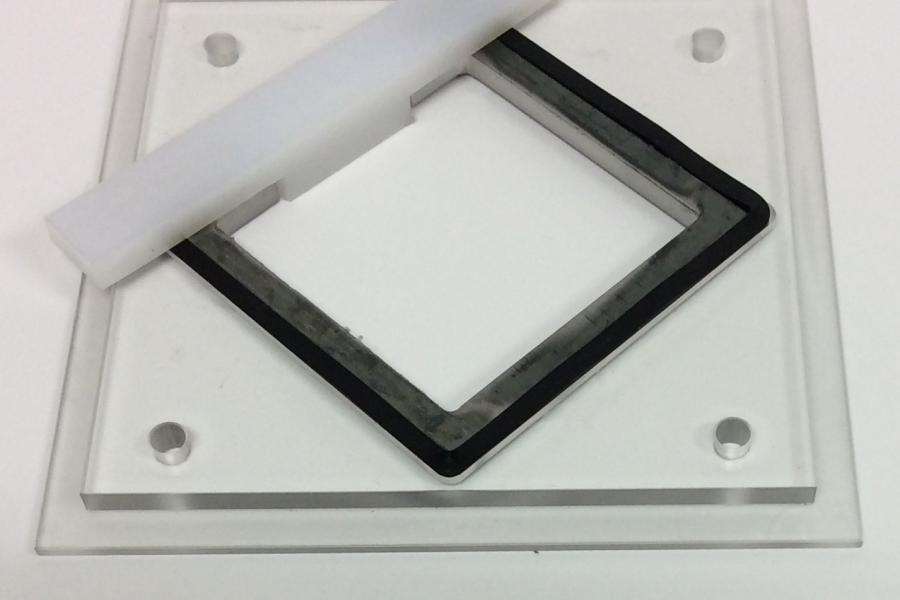

Holder for 45 degree rotated lithography-Scribing at 45 degrees by latticegear.com

Different Types of Lithography

Various types of lithography techniques exist, each tailored for specific applications and capabilities.

Optical lithography employs light to transfer images, achieving resolutions down to 0.1 micrometers. Photolithography is crucial for integrated circuits and microfabrication, underpinning the semiconductor manufacturing process. Contact printing is another method used in circuit fabrication, notable for its ability to achieve resolutions of less than 1 micron.

Electron beam lithography utilizes a focused electron beam for high-resolution patterns, albeit with slower throughput. Electron beam lithography is particularly suitable for unique designs requiring precision.

Ion beam lithography uses ions for precise modifications, offering high resolution for nanopatterning.

X-ray lithography leverages X-rays for deep sub-micrometer structures but faces challenges in mask fabrication.

Other methods include nanoimprint lithography and offset lithography, each providing distinct advantages in speed and application.

These evolving techniques integrate new materials and technologies to enhance performance across various industries.

Applications of Lithography in Printing

Applications of lithography in printing encompass a wide range of commercial and artistic endeavors.

Offset lithography efficiently produces high volumes of books and newspapers, while packaging materials benefit from precise color matching. In offset lithography, the inked image is printed on a rubber cylinder, allowing for versatile printing on various materials. The printing process consists of three main stages: prepress, press, and postpress.

Advertising collateral, including posters and flyers, showcases high-resolution image reproduction.

In the fine arts, artists create limited-edition prints and reproduce artworks through photolithography.

Publication printing guarantees consistent quality for magazines and catalogs.

Promotional materials, such as brochures and point-of-purchase displays, employ vibrant colors and detailed designs.

Lithography also supports diverse substrates, enabling effective labeling and packaging solutions across industries, meeting varying client needs and industry standards. Additionally, modern lithography has diversified materials used, improving its adaptability to various printing requirements.

Aligned 2-Photon Lithography (A2PL®) by nanoscribe.com

10+ Printer Operator Resume Samples & Templates for 2025 by qwikresume.com

Technological Advances and Innovations in Lithography

Lithography has undergone significant technological advances, particularly in the field of semiconductor manufacturing.

High-NA EUV lithography systems facilitate the production of sub-2 nm logic and DRAM nodes, enhancing yield and reducing costs. The integration of artificial intelligence and machine learning optimizes machine uptime and improves exposure accuracy. Increased throughput from advanced light sources significantly enhances production efficiency, allowing for quicker fabrication processes and higher output. ASML’s EUV lithography technology has played a pivotal role in enabling these advancements, reinforcing its importance in modern chip manufacturing. Promising performance demonstrated down to 16 nm pitch with improved resist materials further underscores the rapid progression in lithography capabilities.

Breakthroughs in light sources achieve higher stability and throughput, enabling the patterning of features below 20 nm without multipatterning. Innovative materials enhance process reliability.

The semiconductor industry’s shift towards advanced nodes fosters energy-efficient designs, supporting the rapid growth of applications in 5G, AI, and IoT markets, projecting substantial economic impact by 2030.
