Dieline

Dieline Definition

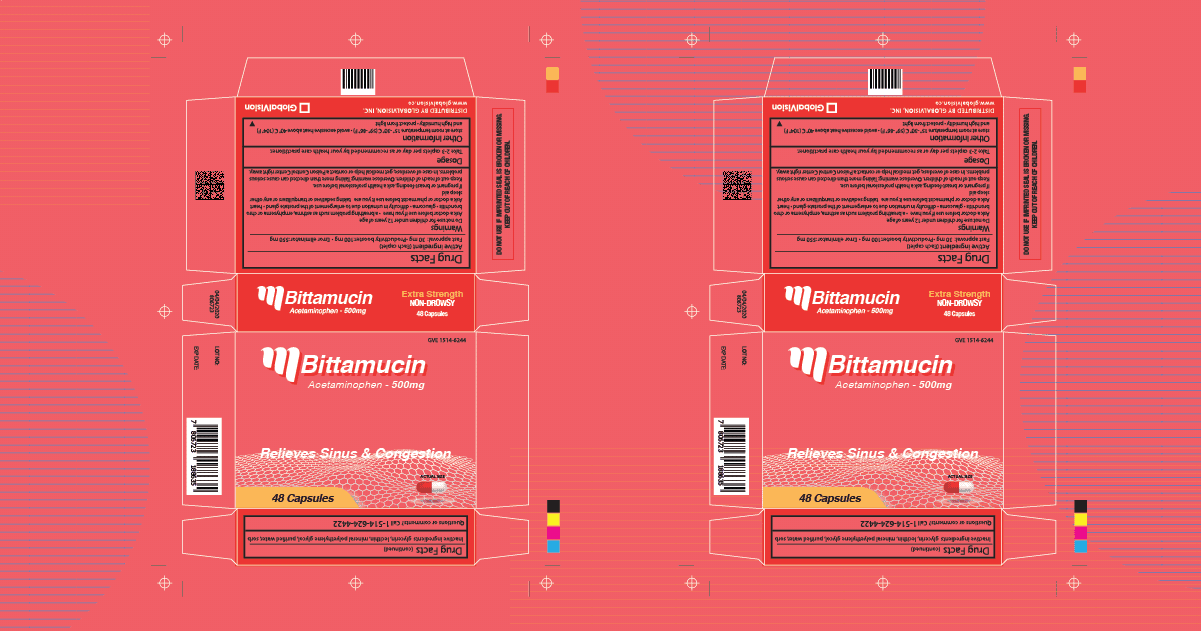

A dieline is a precise blueprint used in packaging design that defines cutting, folding, and assembly instructions for packaging materials. It includes essential elements such as cut lines, fold lines, bleed zones, and safety margins, all vital for ensuring accurate dimensions and structural integrity. Dielines are typically designed in vector format using software like Adobe Illustrator to facilitate communication between designers and manufacturers. Understanding dieline construction is important for effective design processes and successful production outcomes. More details follow.

Quick Summary

• A dieline is a flattened layout used in packaging design that outlines cutting and folding instructions for production.
• It includes cut lines, fold lines, bleed zones, and safety margins to ensure accurate assembly and graphic placement.
• Dielines are created in vector format, often using software like Adobe Illustrator, for precision and clarity.
• They serve as a communication tool between designers and manufacturers, reducing errors and improving workflow efficiency.
• Properly constructed dielines prevent production mistakes, ultimately saving time and costs in the packaging process.

Understanding the Basics of a Dieline

A dieline serves as a critical component in the packaging design process, providing a flattened layout that delineates all essential elements for production. This blueprint includes a cutting guide, layout boundary, and folding lines, ensuring accurate dimensions and material use. Designed primarily in vector format for precision cutting guides, dielines facilitate communication among designers and manufacturers. They offer structural guidance, validating the placement of graphics while allowing for adjustments before physical prototyping. Adhering to specified line thickness standards, dielines prevent misalignment issues and enable quality assurance, in the end enhancing the efficiency of packaging production. Also be aware that a well-constructed dieline can prevent production errors that could save both time and money. Aqueous-based coatings can be applied to enhance the durability of the printed elements on the packaging. Accurate dielines enhance product presentation and brand image, making them invaluable in the packaging process. This is because dielines serve as a packaging template for die-cutting machines, ensuring that every detail is accounted for in the production phase. Also, effective dieline design can improve DOOH advertising by ensuring that packaging aligns with dynamic marketing strategies.

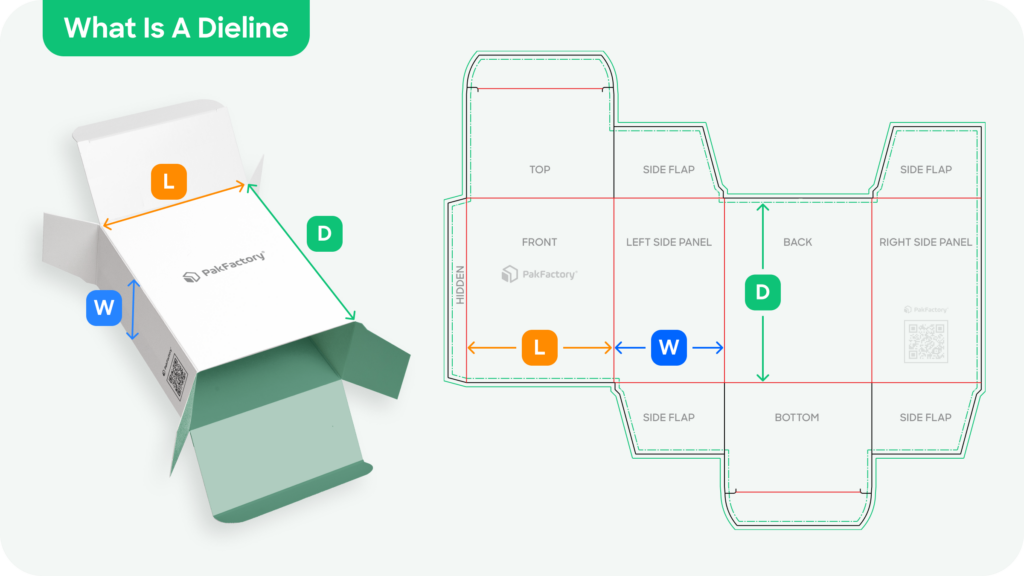

The Importance of Dielines in the Die-Cutting Process for Printed ... by globalvision.co

Key Components of a Dieline

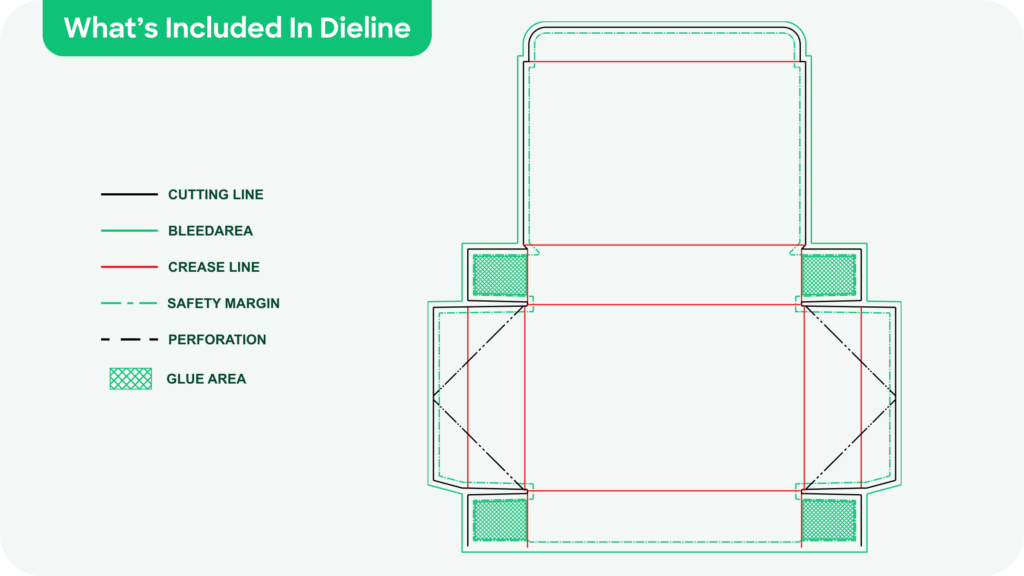

Key components of a dieline include various lines and zones that serve specific functions in the packaging design process. Cut lines, marked by solid black lines, define the product’s final shape, while fold and score lines, represented by dashed lines, guide assembly. Additionally, dielines aid in refining the layout and die-cutting process, facilitating prototyping and mass production. Bleed zones, indicated by blue lines, guarantee graphics extend beyond trim edges, preventing white borders. Safety margins protect text from being cut off. Perforation and glue lines facilitate user interaction and structural integrity. The foundation for packaging design is critical for achieving accurate dimensions and successful product assembly. Utilizing vector formats is essential for precision, and proper bleed setup and overprint settings for dielines enhance the overall quality of the final product. Ultimately, understanding the importance of dielines ensures a seamless transition from design to production.

What is a Dieline in Packaging & Print? by pakfactory.com

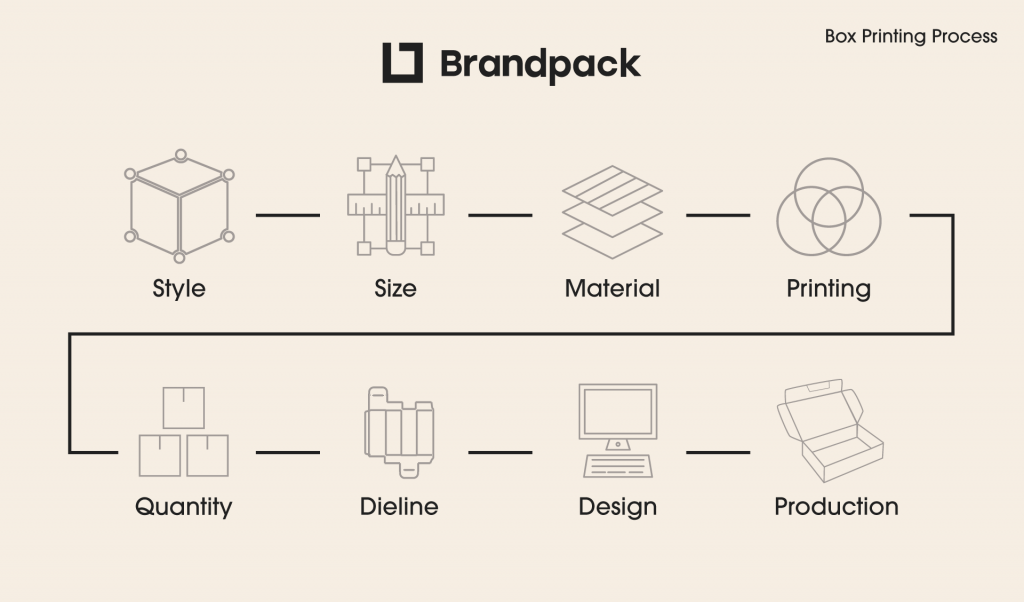

The Complete Box Printing Process: From Design to Delivery by offsetprintingtechnology.com

The Design and Proofing Process

The design and proofing process of a dieline necessitates meticulous planning and execution to guarantee alignment with project objectives and manufacturing standards. Utilizing vector-based software such as Adobe Illustrator, designers create dielines in .ai format, establishing color-coded conventions for clarity. Document settings should adhere to PDF/X-4 standards, ensuring compatibility. Preflight checks in Acrobat Pro identify potential issues, including misalignments or incorrect bleed settings. The Pathfinder tool in Illustrator aids in refining cut and fold lines. Accurate dielines ensure iterative proofing rounds enable the assessment of mockups, ensuring that all specifications align with both client expectations and manufacturing capabilities before finalization. The die cutting basics emphasize that creating a precise die line is the first step in the custom packaging printing process. This process is vital because dielines serve as prototypes that help save money by identifying flaws before mass production. Also, understanding print-ready file requirements is essential for ensuring that all elements of the dieline meet industry standards. The use of Computer-to-Plate (CPT) technology can significantly enhance the quality and efficiency of the printing process, ensuring that dielines translate accurately onto physical products.

The Manufacturing Workflow

Manufacturing workflows for dielines encompass a series of precise steps designed to guarantee accuracy and efficiency in production.

Initially, files must be reviewed for incorrect bleed settings and non-vector dielines, which can hinder the cutting process. The creation of customizable metal die plates follows, ensuring specifications are met. Spot color usage for dieline visibility without printing is critical during this phase. Also, dielines help prevent design errors by providing clear guidelines for the production team. This process often leverages digital printing technology to streamline production and enhance accuracy. The choice of material like 16pt cardstock ensures durability and a professional finish. Prototyping validates structural integrity, while material selection considers weight and compatibility. This ensures that the dieline serves as a blueprint for the packaging process, leading to a professional finished product.

Finally, printing integration requires adherence to CMYK color mode and proper bleed zones, ensuring ideal alignment and quality in the finished product.

What is a Dieline in Packaging & Print? by pakfactory.com

Essential Tools and Technology for Dieline Creation

Essential tools and technology for dieline creation encompass a range of software and platforms that facilitate the design and production process. Adobe Illustrator serves as an industry-standard tool for creating precise vector files, essential for accurate cutting guides. ArtiosCAD specializes in complex packaging structures, ensuring material considerations are met. Die-cutting software, such as Kongsberg and Roland systems, translates dielines into machine-ready instructions. Vector file export in formats like PDF and AI maintains clarity during production. Tools like Pacdora enhance collaborative design efforts, providing template libraries and real-time editing capabilities, streamlining the overall dieline creation process. The platform offers over 3,000 dielines available for selection, catering to diverse packaging needs. Understanding the importance of dielines in packaging design is crucial for creating aesthetically pleasing and functional products. Also be aware that using a generator can create new shapes efficiently, enabling designers to visualize their concepts in real time. Also, employing CorelDRAW’s capabilities can significantly improve the precision of vector illustrations in packaging design. Also be aware that utilizing 120gsm paper as a medium for prototypes can significantly enhance the presentation quality of the dieline.
